X Series
Technical Parameter | 1510 | 3015 |
|---|---|---|
Power | 1500-3000W | 3000W |
Processing Format (L*W) | 1500mm*1000mm | 3000mm*1500mm |
X/Y-axis Positioning Accuracy | ±0.03mm/m | ±0.03mm/m |
X/Y-axis Repositioning Accuracy | ±0.03mm | ±0.03mm |
Max. No-load Speed | 100m/min | 120m/min |
Max. Acceleration | 1.2G | 1.0G |
Max. Cutting Capacity | 16-20mm CS, 10-12mm SS, 4-12mm AL alloy, 4-8mm brass, 3-4mm red copper | |
Max. Loading Weight of Platform | 200kg | 700kg |
Overall Dimensions (L*W*H) | 4400*2900*2300mm | 4800*3600*2800mm |
Technical Parameter | G3015X |
|---|---|
Power | 3000W-6000W |
Processing Format (L*W) | 3048mm*1524mm(10′ *5′) |
X/Y-axis Positioning Accuracy | ±0.03mm/m(±0.00118”) |
X/Y-axis Repositioning Accuracy | ±0.03mm(±0.00118”) |
No-load Speed | 140m/min |
Acceleration | 1.5G |
Optional | TUV CE |

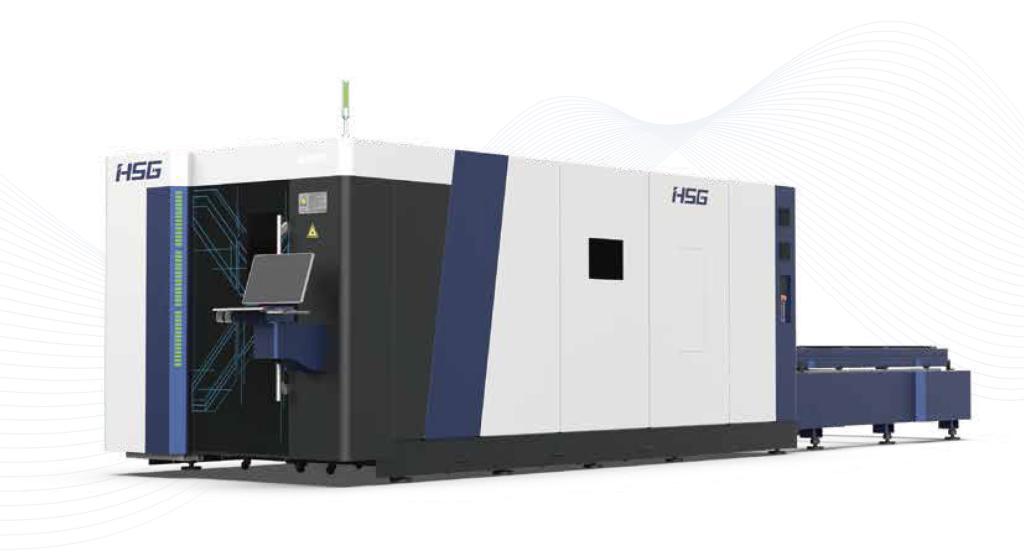

GX Series

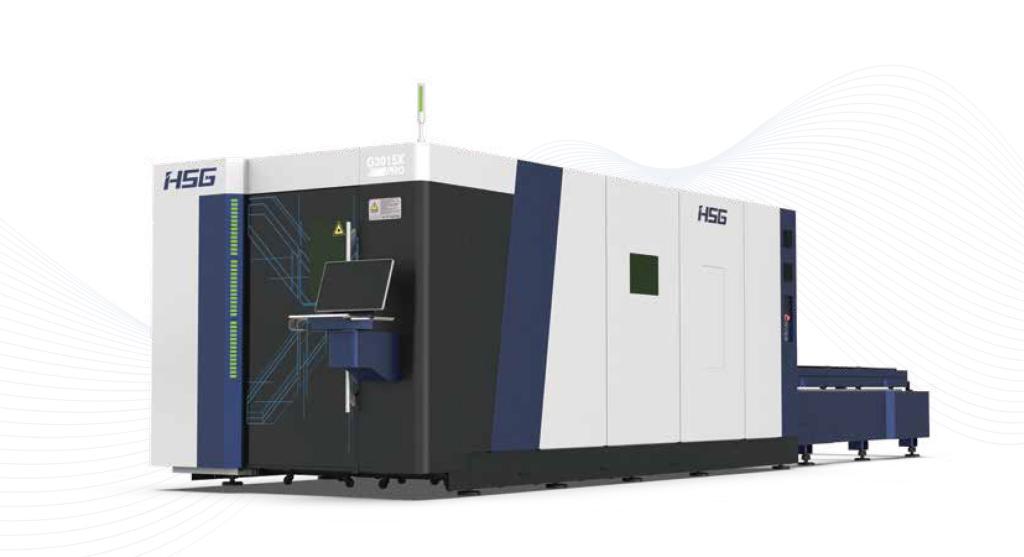

GX PRO Series
Technical Parameter | G3015XPRO | G4020XPRO |
|---|---|---|
Power | 12000-3000W | 3000W-30000W |
Processing Format (L*W) | 3048mm*1524mm(5’*10′) | 4064mm*2032mm(5’*10′) |
X/Y-axis Positioning Accuracy | ±0.03mm/m(±0.00118”) | |
X/Y-axis Repositioning Accuracy | ±0.03mm(±0.00118”) | |
No-load Speed | 140m/min | 120m/min |
Acceleration | 1.5G | |
Optional | TUV CE |
Get in touch with LP systems for a quote today!
