Press Brake with Automation

G Turbobend Series

Ultra fast and productive hydraulic press brake up to 1.5m.

G Turbobend Series Specification
Strong and stable construction Bending Force:	40 Tonnes
Working Length:	1550mm
Distance between uprights:	1550mm
Daylight:	400mm
Punch Stroke:	200mm
Fast Speed:	260mm/sec
Working Speed:	20mm/sec*
Upstroke Speed:	200mm/sec
Back gauge speed:	800mm/sec
Main Electric Motor:	7.5kW
Weight:	4.500kg

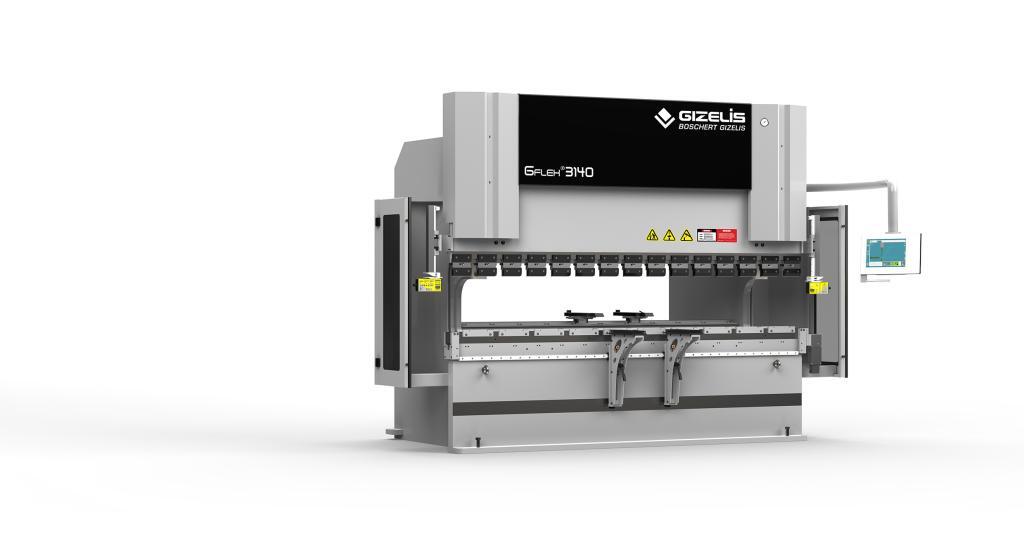

G Flex Series

High level press brakes up to 4-axis. The best “value for money” choice.

	G FLEX® 2080	G FLEX® 3080	G FLEX® 3140	G FLEX® 3175	G FLEX® 3210	G FLEX® 4140	G FLEX® 4210	G FLEX®
Bending Force	[tonnes]	80	80	140	175	210	140	210
Working length	[mm]	2100	3100	3100	3100	3100	4100	4100
Distance between uprights	[mm]	1550	2550	2550	2550	2550	3550	3550
Throat Depth	[mm]	400	400	400	400	400	400	400
Daylight	[mm]	515	515	515	515	515	515	515
Punch Stroke	[mm]	250	250	250	250	250	250	250
Table width	[mm]	80	80	80	80	114	80	114
Fast Speed	[mm/ sec]	0-180	0-180	0-180	0-160	0-160	0-180	0-160
Working Speed*	[mm/ sec]	0-20	0-20	0-20	0-20	0-20	0-15	0-15
Upstroke speed	[mm/ sec]	0-160	0-160	0-160	0-140	0-130	0-160	0-130
Hydraulic pressure (max)	[bar]	275	275	275	275	275	275	275
Main electric motor	[kW]	11	11	15	18.5	22	15	22
Length	[mm]A	3000	4000	4000	4000	4000	5000	5000
Width	[mm]B	1700	1700	1800	1850	1900	1850	1900
Height	[mm]C	2600	2700	2700	2900	2900	3050	3100
Weight (approximate)	[kg]	6000	8500	10000	11200	13200	12400	14500

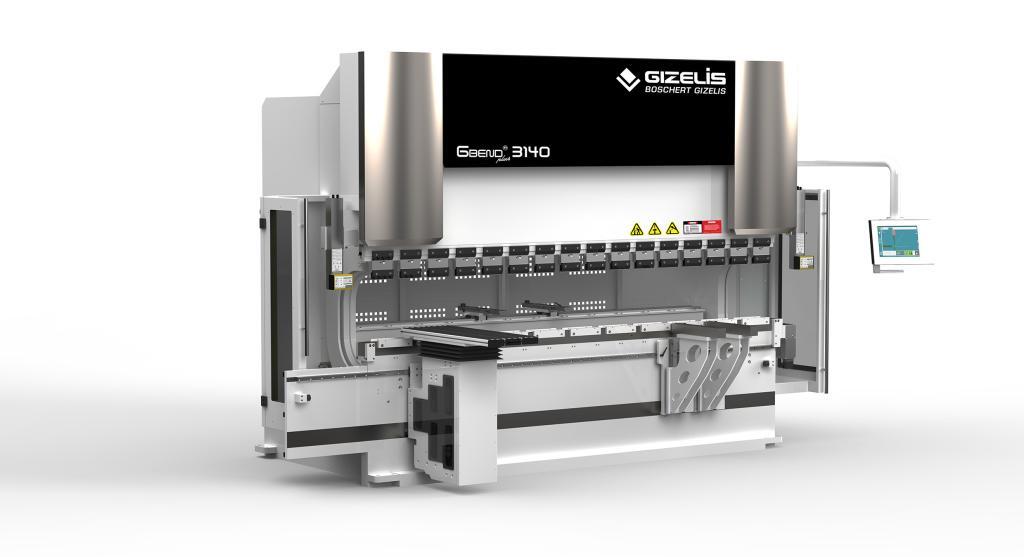

G Bend Plus Series

Superior press brakes with top-class equipment and components offering the ultimate flexibility in bending process.

	G Bend ^®2080	G Bend ^®2580	G Bend ^®3080	G Bend ^®3110	G Bend ^®3140	G Bend ^®3175	G Bend ^®3210	G Bend ^®3290	G Bend ^®3320	G Bend ^®
Bending Force	[tonnes]	80	80	80	110	140	175	210	290	320
Working length	[mm]	2100	2900	3400	3400	3400	3400	3400	3400	3400
Distance between uprights	[mm]	1550	2550	3050	3050	3050	3050	3050	3050	3050
Throat Depth	[mm]	400	400	400	400	400	400	400	400	400
Daylight	[mm]	515	515	515	515	515	515	515	515	515
Punch Stroke	[mm]	250	250	250	250	250	250	250	250	250
Table width	[mm]	80	80	80	80	80	80	114	114	114
Fast Speed	[mm/ sec]	0-180	0-180	0-180	0-180	0-180	0-160	0-160	0-150	0-120
Working Speed *	[mm/ sec]	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-15	0-10
Upstroke speed	[mm/ sec]	0-160	0-160	0-160	0-160	0-160	0-140	0-130	0-120	0-100
Hydraulic pressure (max)	[bar]	275	275	275	275	275	275	275	275	275
Main electric motor	[kW]	11	11	11	15	15	18.5	22	30	30
Length	[mm]A	3200	3700	4400	4400	4400	4400	4400	4400	4400
Width	[mm]B	1700	1700	1700	1700	1700	1800	1950	1950	2100
Height	[mm]C	2700	2700	2700	2750	2800	2950	3000	3100	3100
Weight	[kg]	7300	8000	8500	9500	11000	12500	14500	16200	18800

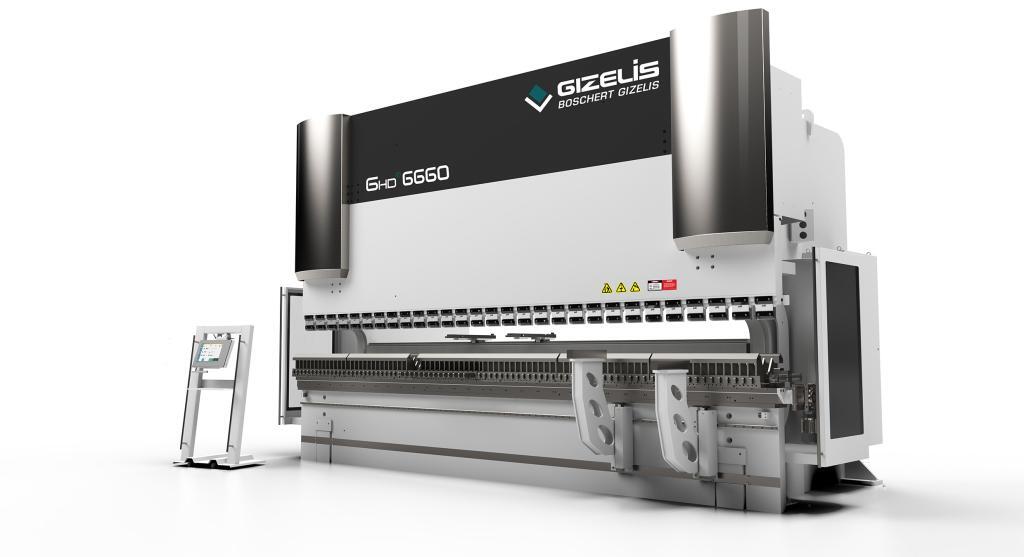

G HD Series

Heavy duty machines for loads exceeding 320 tonnes with strong rigid frames and heavy duty applications.

		G HD^® 4440	G HD^®6440	G HD^®6550	G HD^®6660	G HD^®6880	G HD^®7550	G HD^® 7880	G HD ^®4440	G HD ^® 6440	G HD ^® 6550	G HD ^® 6660	G HD ^® 6880	G HD ^® 7550	G HD ^®7880
Bending Force	[tonnes]	440	440	550	660	880	550	880	440	440	550	660	880	550	880
Working length	[mm]	4100	6100	6100	6100	6100	7100	7100	4100	6100	6100	6100	6100	7100	7100
Distance between uprights	[mm]	3550	5050	5050	5050	5050	6050	6050	3550	5050	5050	5050	5050	6050	6050
Throat Depth	[mm]	500	500	500	500	500	500	500	500	500	500	500	500	500	500
Daylight	[mm]	570	570	590	590	650	590	650	570	570	590	590	650	590	650
Punch Stroke	[mm]	320	320	350	350	380	350	380	320	320	350	350	380	350	380
Table width	[mm]	220	220	220	220	220	220	220	220	220	220	220	220	220	220
Fast Speed	[mm/sec]	0-100	0-100	0-100	0-90	0-90	0-90	0-90	0-100	0-100	0-100	0-90	0-90	0-90	0-90
Working Speed *	[mm/sec]	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7	0-7
Upstroke speed	[mm/sec]	0-90	0-90	0-90	0-80	0-80	0-80	0-80	0-90	0-90	0-90	0-80	0-80	0-80	0-80
Hydraulic pressure (max)	[bar]	275	275	275	275	275	275	275	275	275	275	275	275	275	275
Main electric motor	[kW]	30	30	37	45	55	37	55	30	30	37	45	55	37	55
Length	[mm]A	5400	7400	7400	7400	7400	8400	8400	5400	7400	7400	7400	7400	8400	8400
Width	[mm]B	2700	2700	2700	2800	2800	2800	2800	2700	2700	2700	2800	2800	2800	2800
Height	[mm]C	3400**	3750**	3800**	4100**	4100**	3800**	4100**	3400**	3750**	3800**	4100**	4100**	3800**	4100**
Weight	[kg]	29000	39000	37000	55000	63000	65000	78000	29000	39000	37000	55000	63000	65000	78000

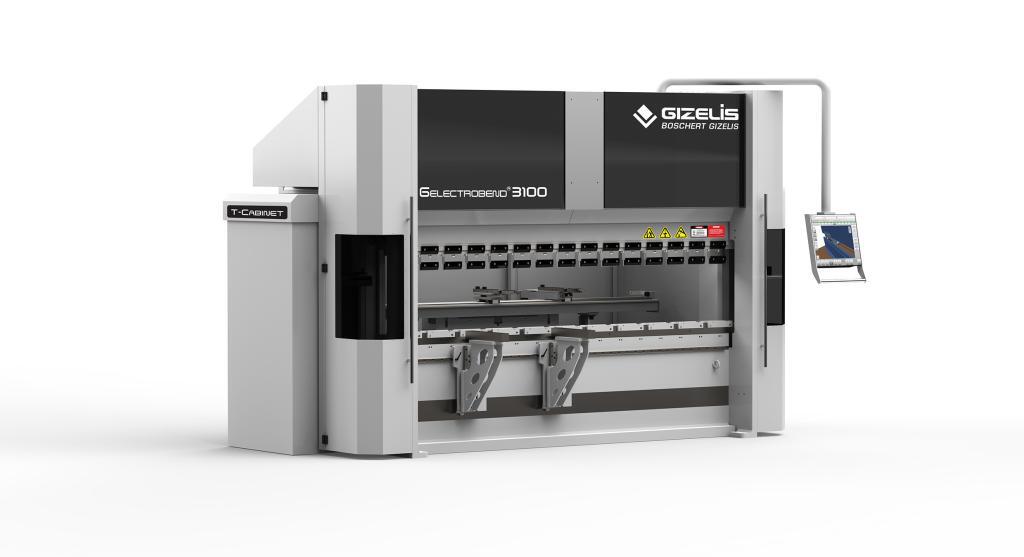

G Electrobend Series

The new line of servo electric press brakes features higher productivity, accuracy and reliability than ever before and in the meantime the operational and maintenance cost are unprecedentedly low.

		G ELECTROBRAKE ® 2060	G ELECTROBRAKE ® 2580	G ELECTROBRAKE ® 2580	G ELECTROBRAKE ® 4200
Bending Force	tonne	60	80	100	200
Working Length	mm	2100	2600	3100	4100
Distance between Uprights	mm	2150	2650	3150	4150
Daylight	mm	600	600	600	600
Punch Stroke	mm	350	350	240	350
Table width	mm	84	84	84	84
Fast speed	mm/sec	120	120	120	120
Working speed	mm/sec	20*	20*	20*	20*
Upstroke speed	mm/sec	100	100	100	100
Power	kW	2x6.5	2x8.4	2x8.4	2x8.4
Length	mm	3100	3600	4100	5200
Width	mm	1650	1650	1650	1800
Height	mm	2670	2670	2670	2750
Weight (Approximate)	kg	5750	6550	7500	8450

Get in touch with LP systems for a quote today!
